‘Devil Bass’
From a catalog:
Vantage VA900B Series
Designed for the professional player who needs a totally versatile instrument for every modern musical style, the Vantage VA900B bass embodies the highest standards of construction and finishing work coupled
with futuristic electronic circuitry. The VA900B’s state-of-the-art active/passive electronic system (housed in a shielded brass compartment) offers up to a total of ±25dB of active tone equalization off the center detent
position. The neck-through-body “transmit” design is the ultimate choice for sustain and structural continuity while two custom-engineered Vantage “split coil” humbucking bass pickups provide a powerful
bottom-end sound with exceptional definition on top. Special coil tap and phase reversal switches can be used to futher modify the overall sound.
|
| Specfications |
Data |
|
| Scale length |
34 inches |
| Nubmer of frets |
24 |
| Neck (material & construction) |
Three pieces of laminated maple with two walnut stripes and a multi-layared center section of ash, walnut and maple running the entire length of the guitar in “transmit” style design.
Adjustable truss rod. |
| Fingerboard |
Rosewood with a brass nut. |

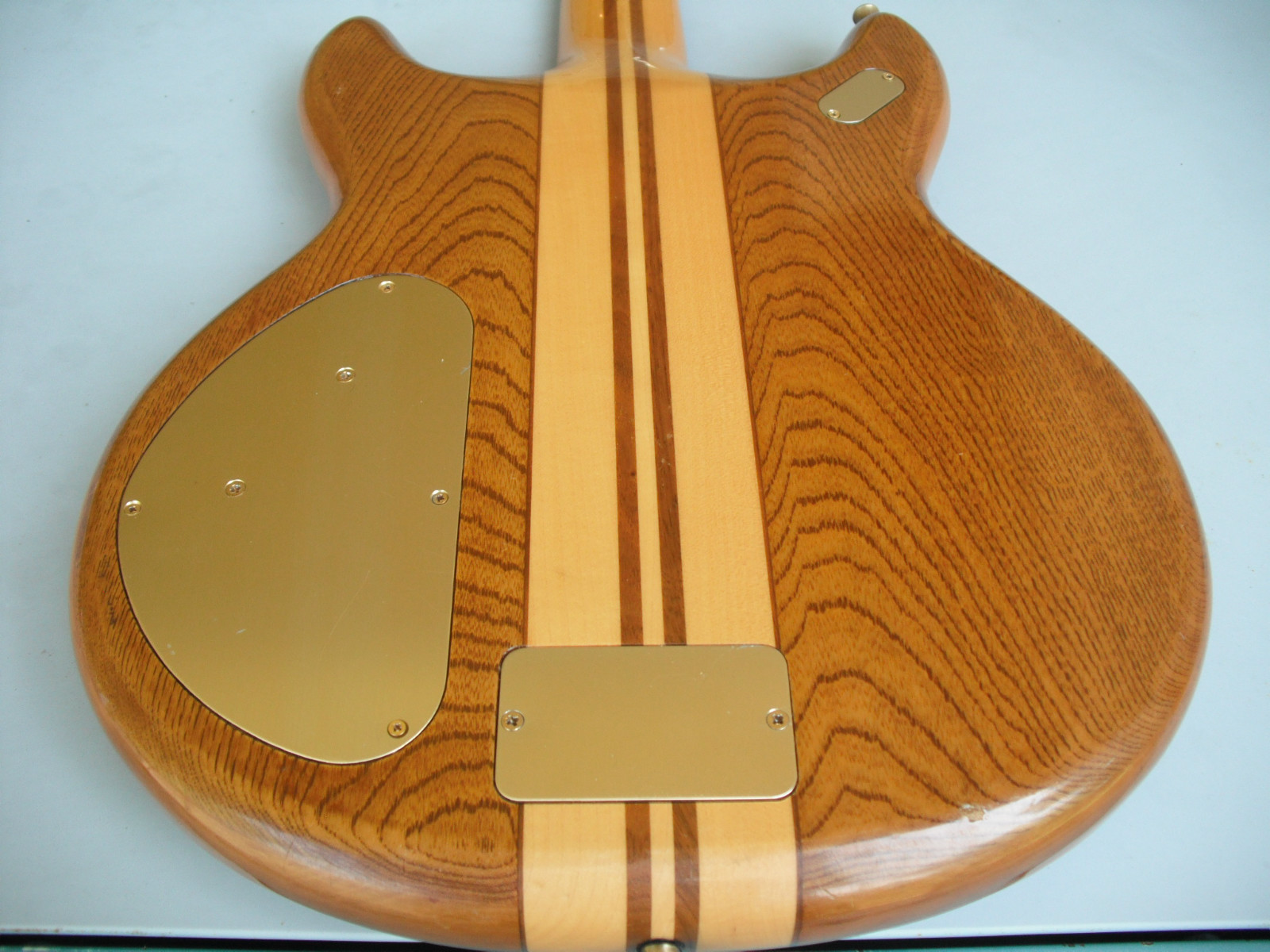

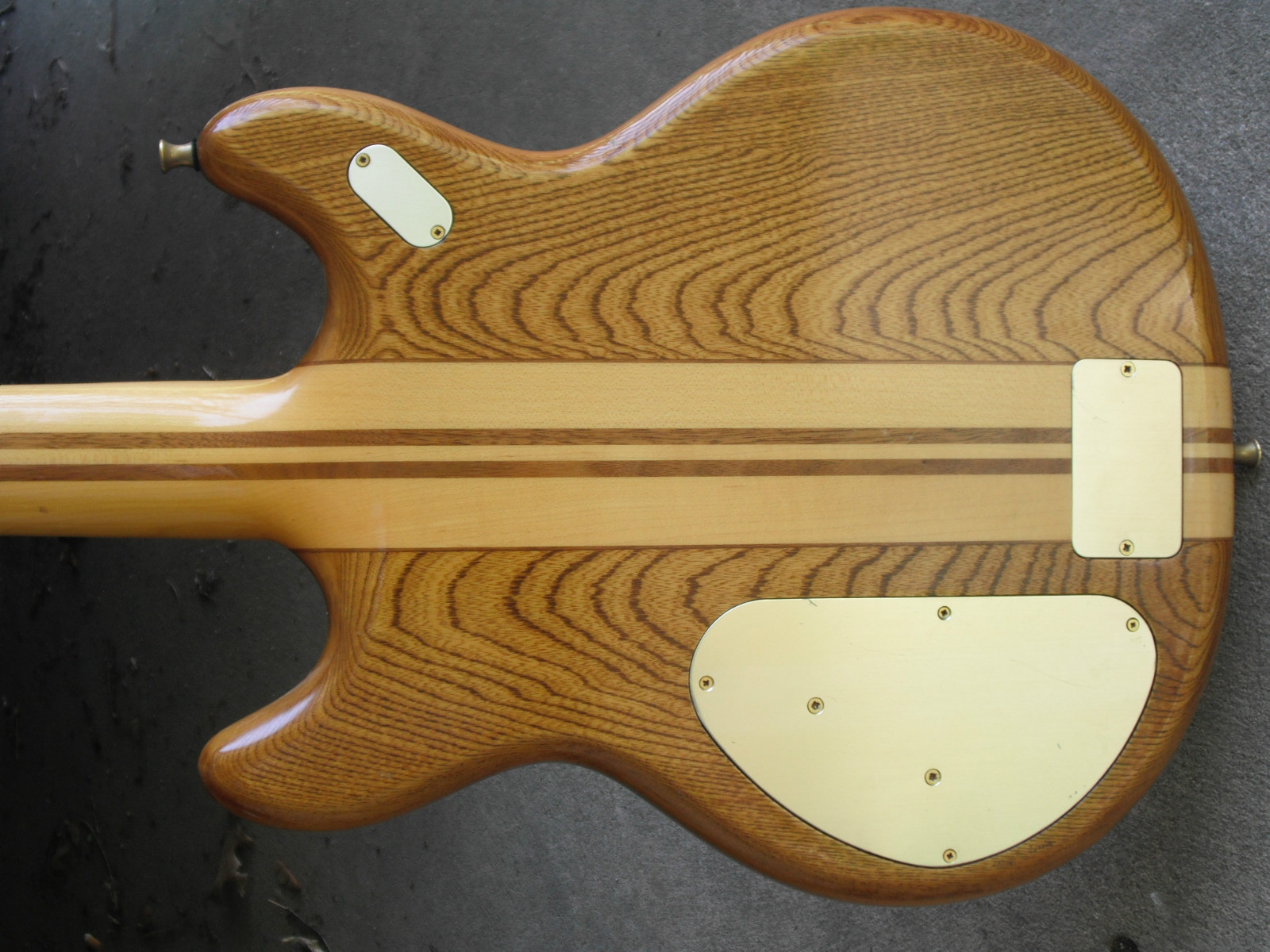

| Body (material & construction) |
Multi-layared ash, walnut and maple with two walnut stringers. |
| Finish |
Matte oak finish. |

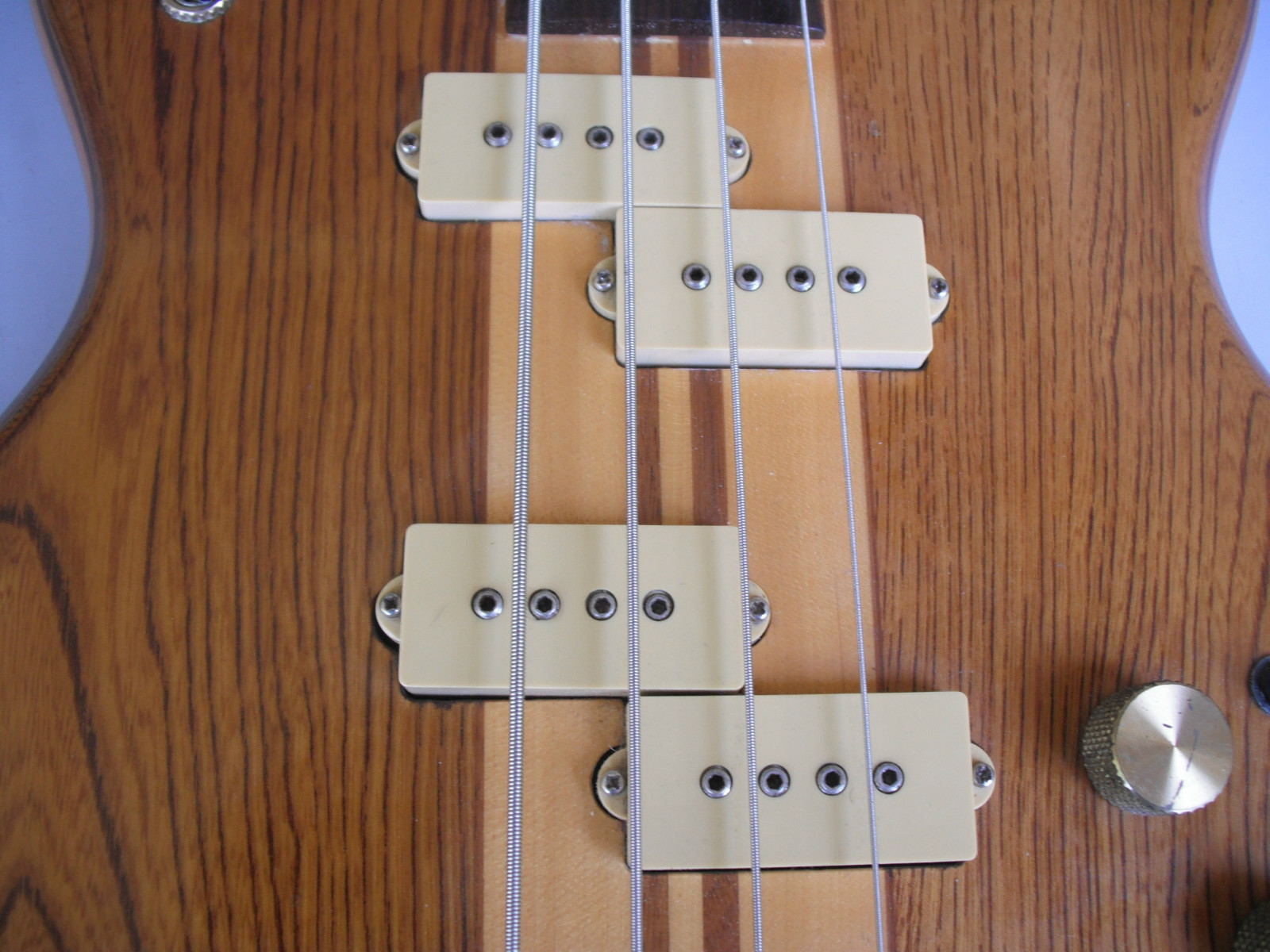

| Pickups |
Two Vantage custom-engineered “split coil” humbucking bass pickups. |

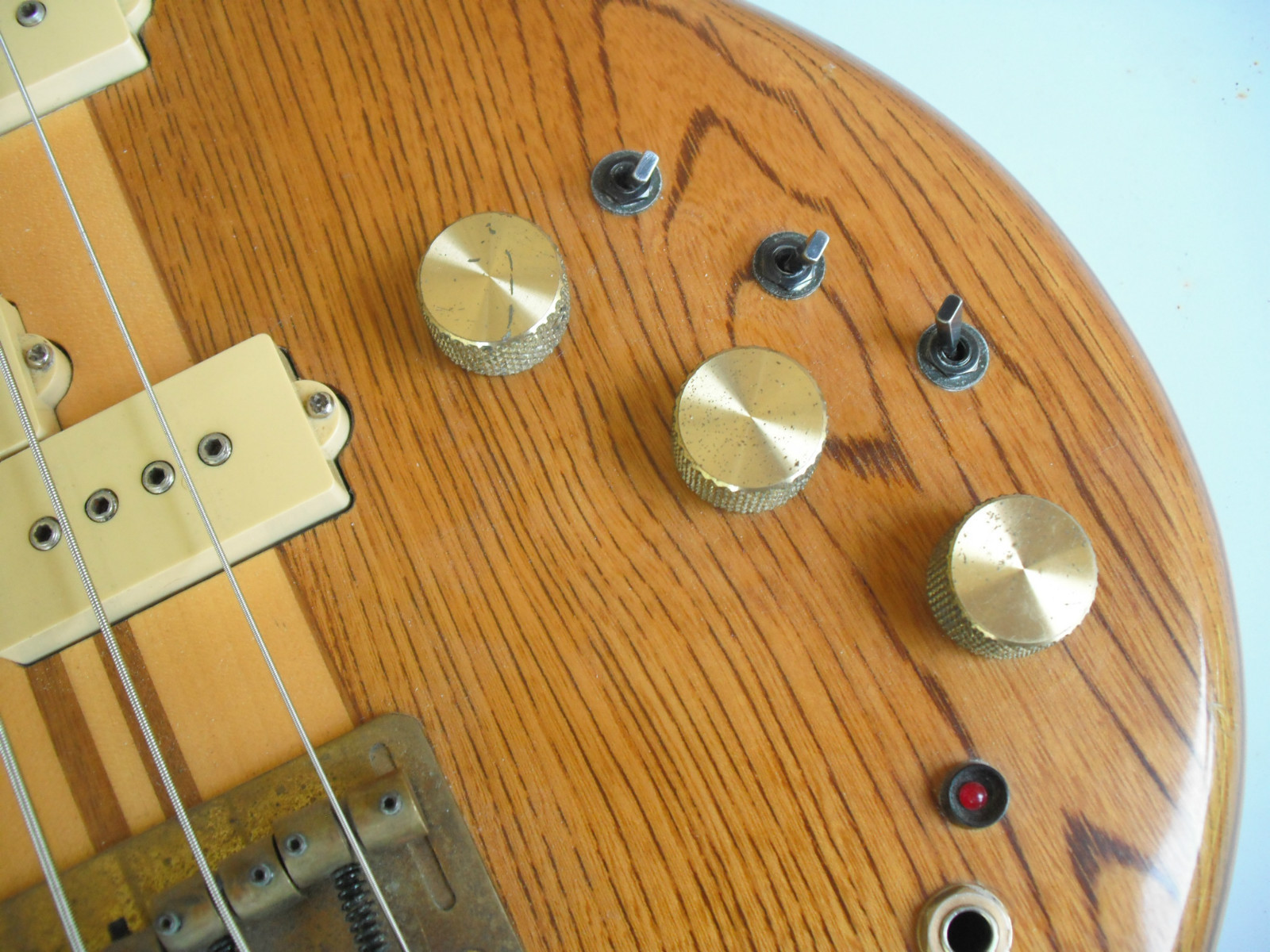

| Control |
Master volume
Active treble & bass control with center detent position
EQ volume
Coil tap / Phase / EQ volume / pickup selector switches. |

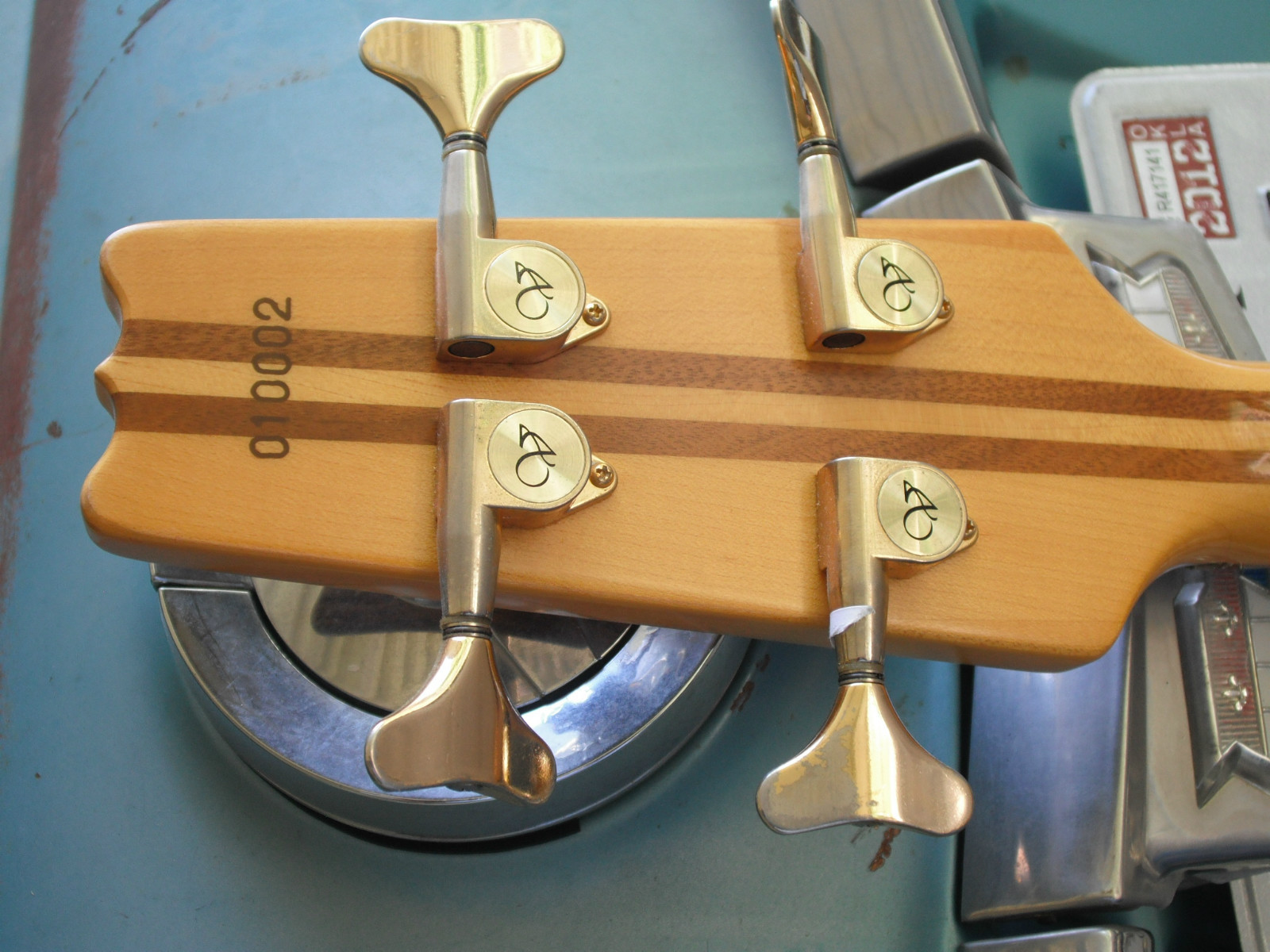

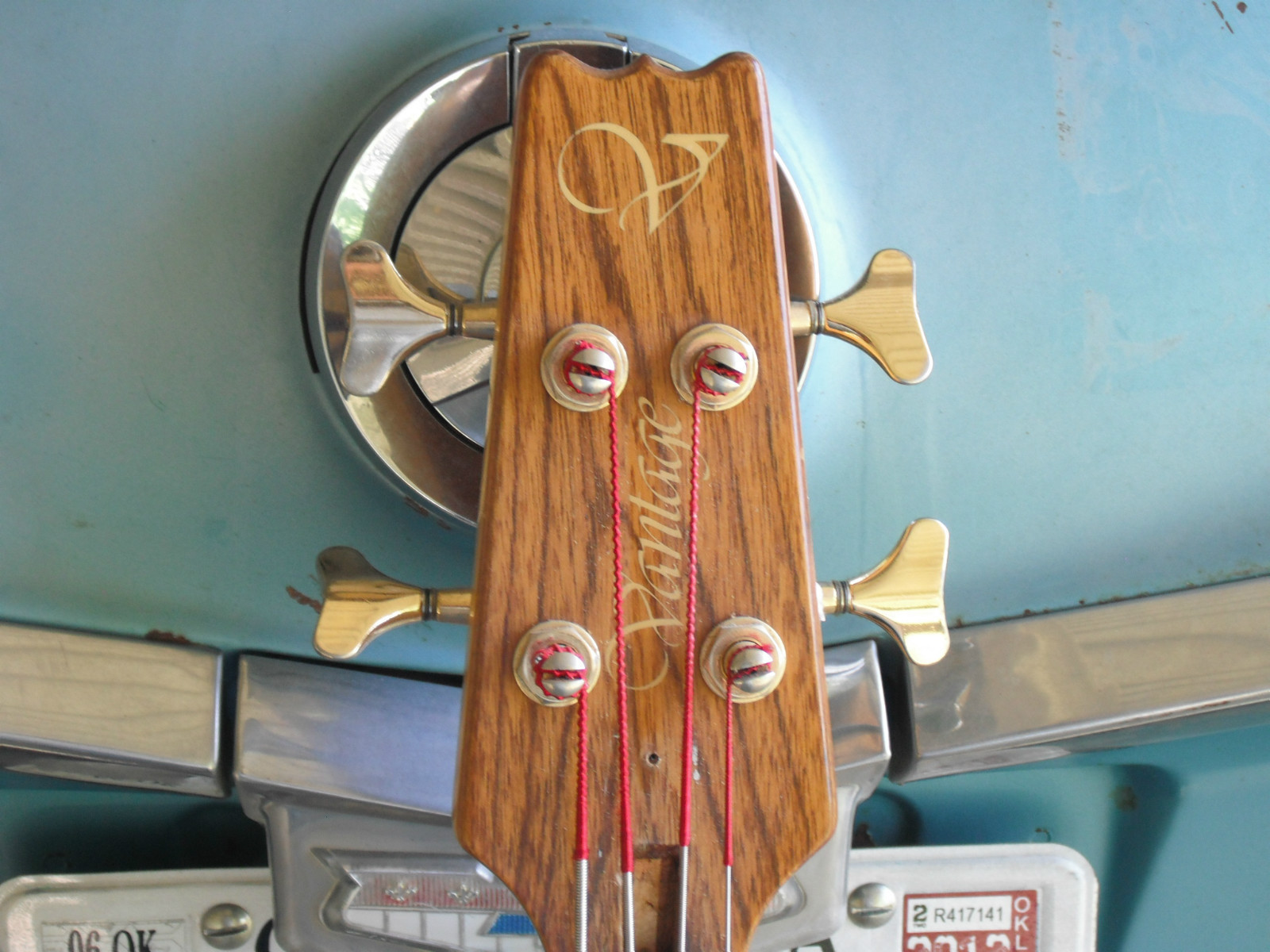

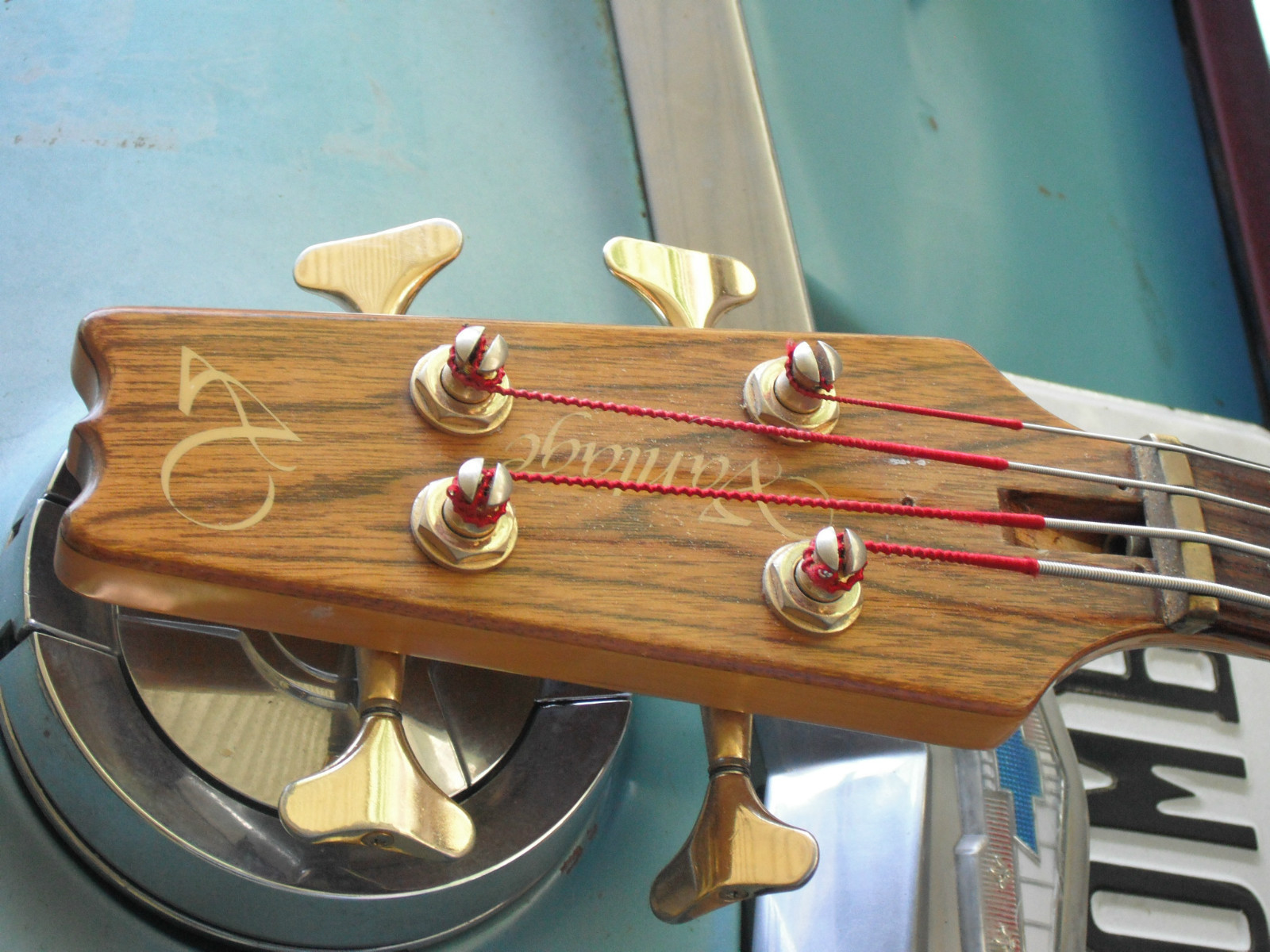

| Machine heads |
Gold-plated, die-cast prescision tuners. |
| Control knobs |
Brass with groove gripe |

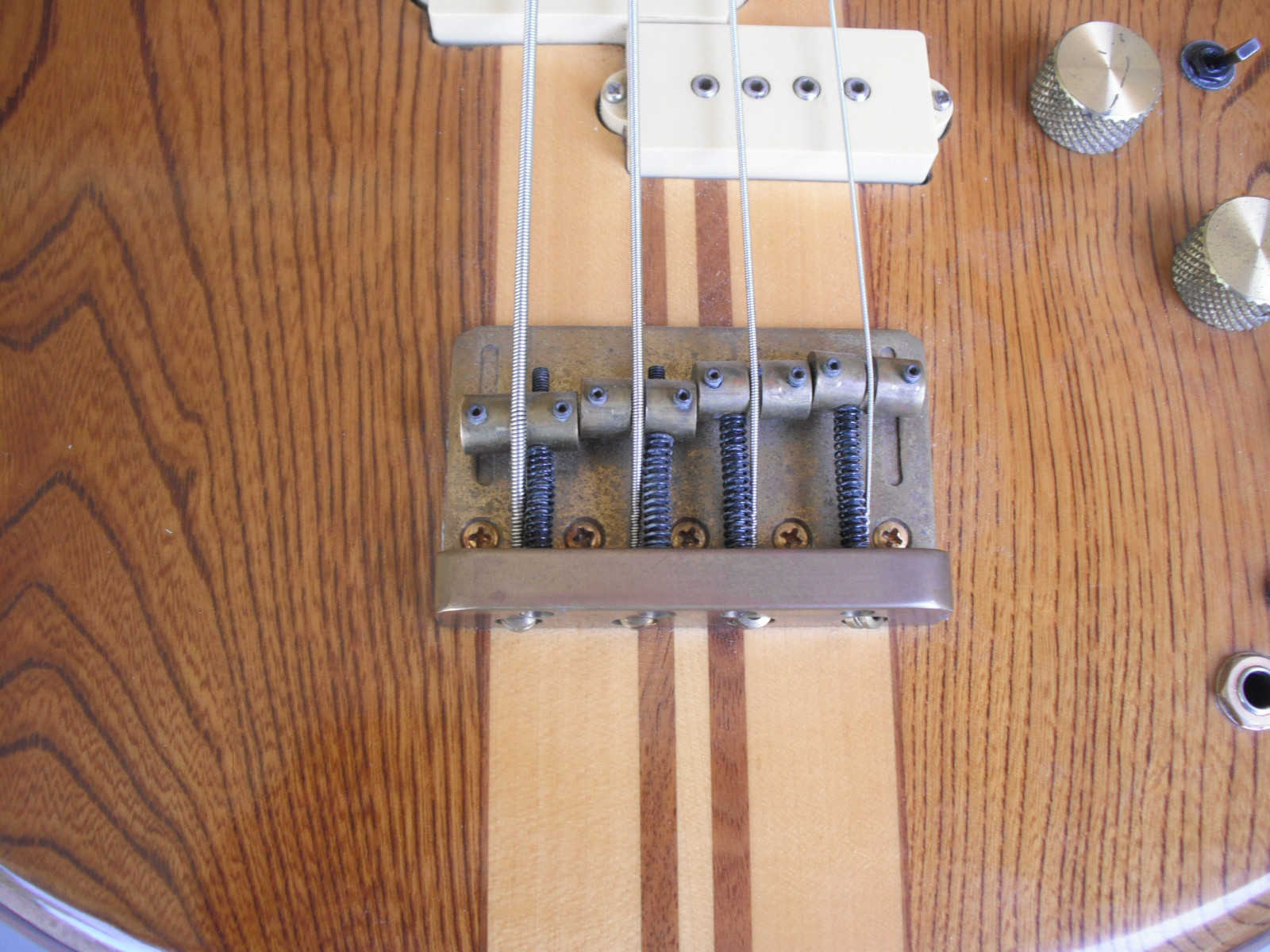

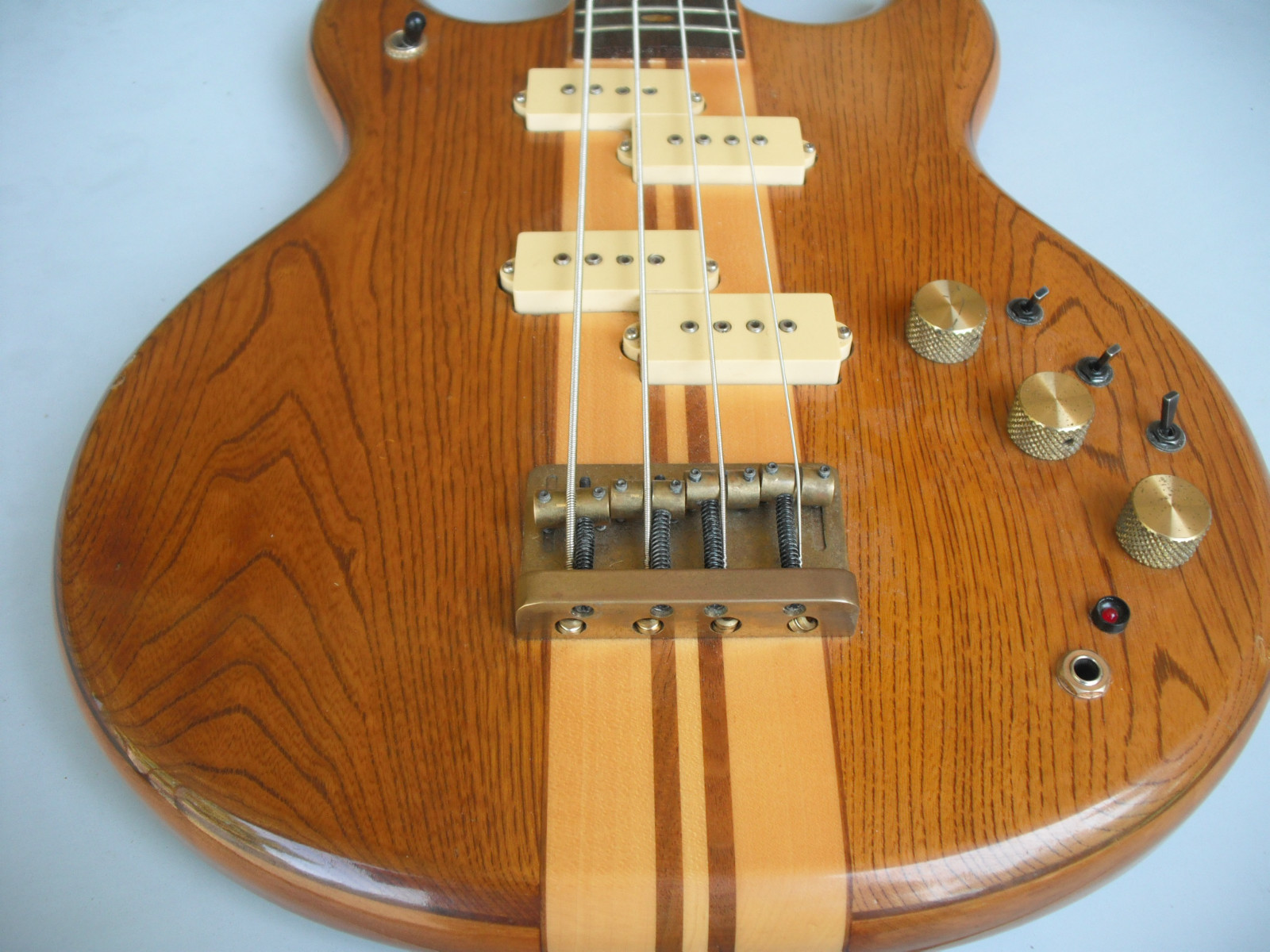

| Bridge / tailpiece |
Brass adjustable combination bridge / tailpiece. |
|
Sources:

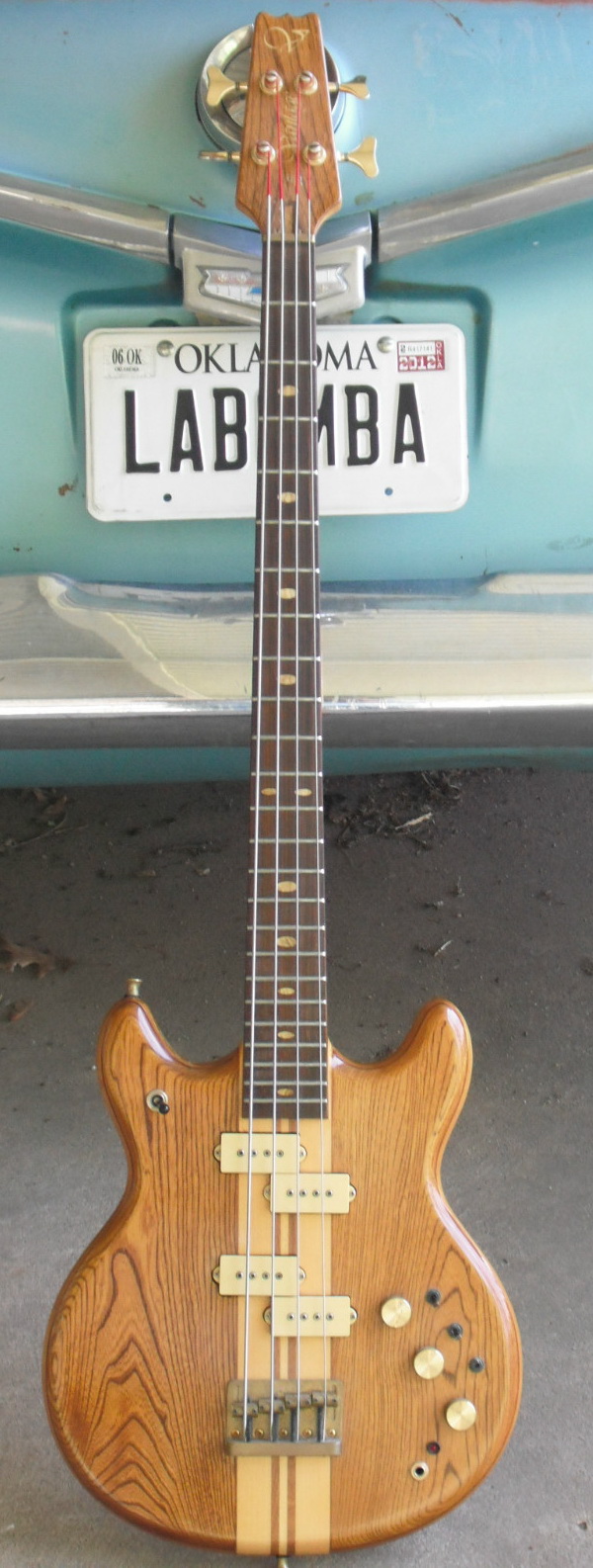

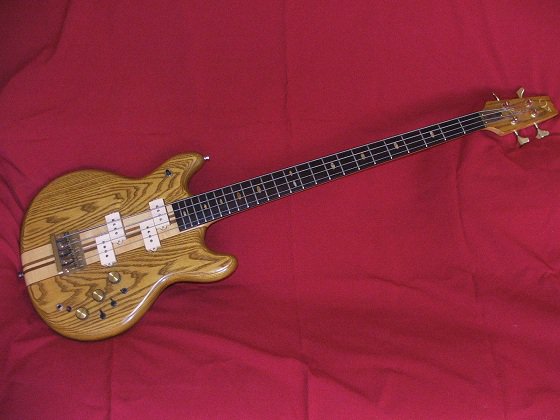

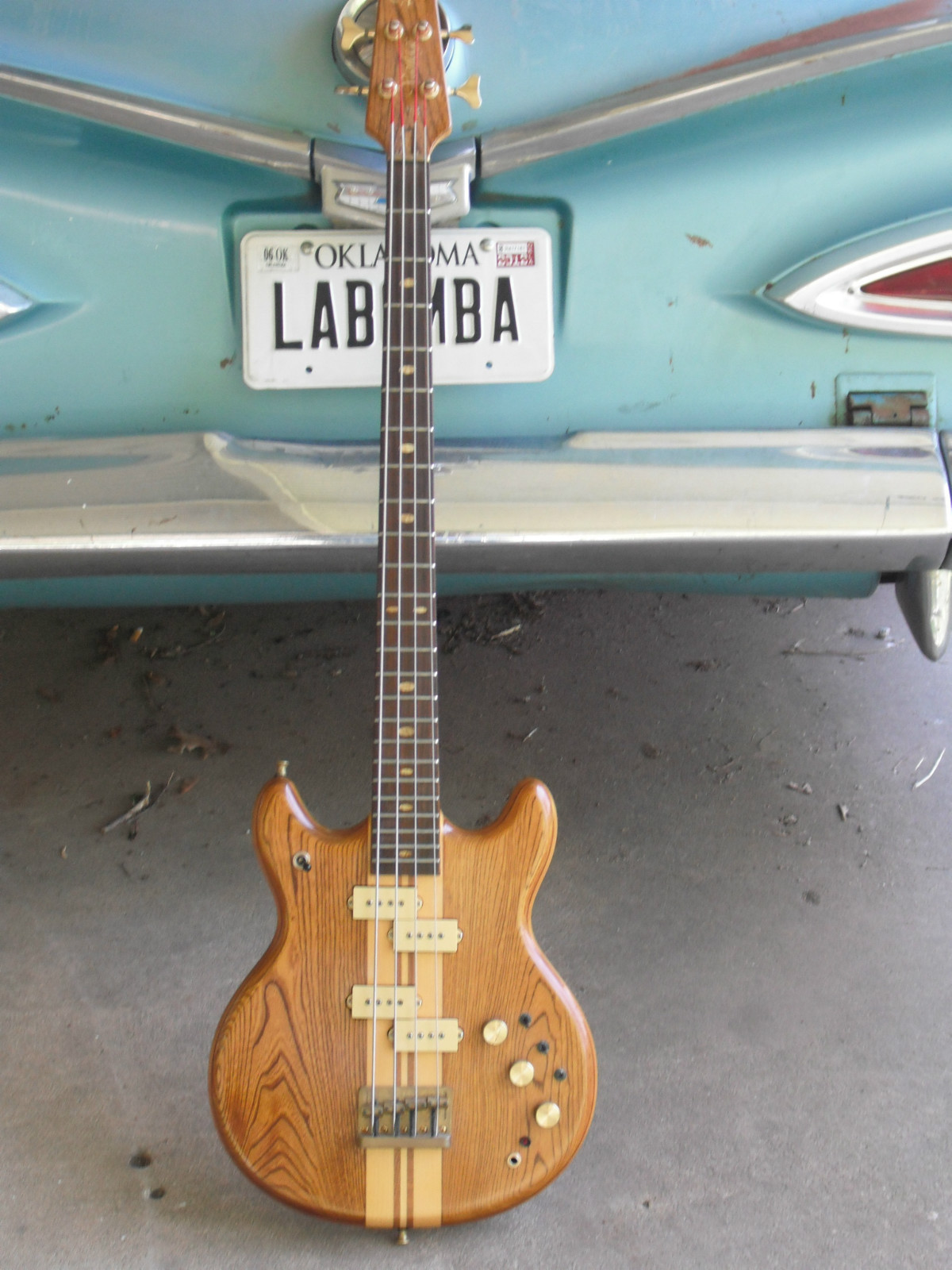

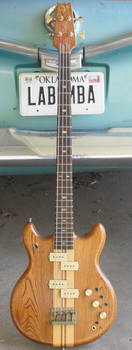

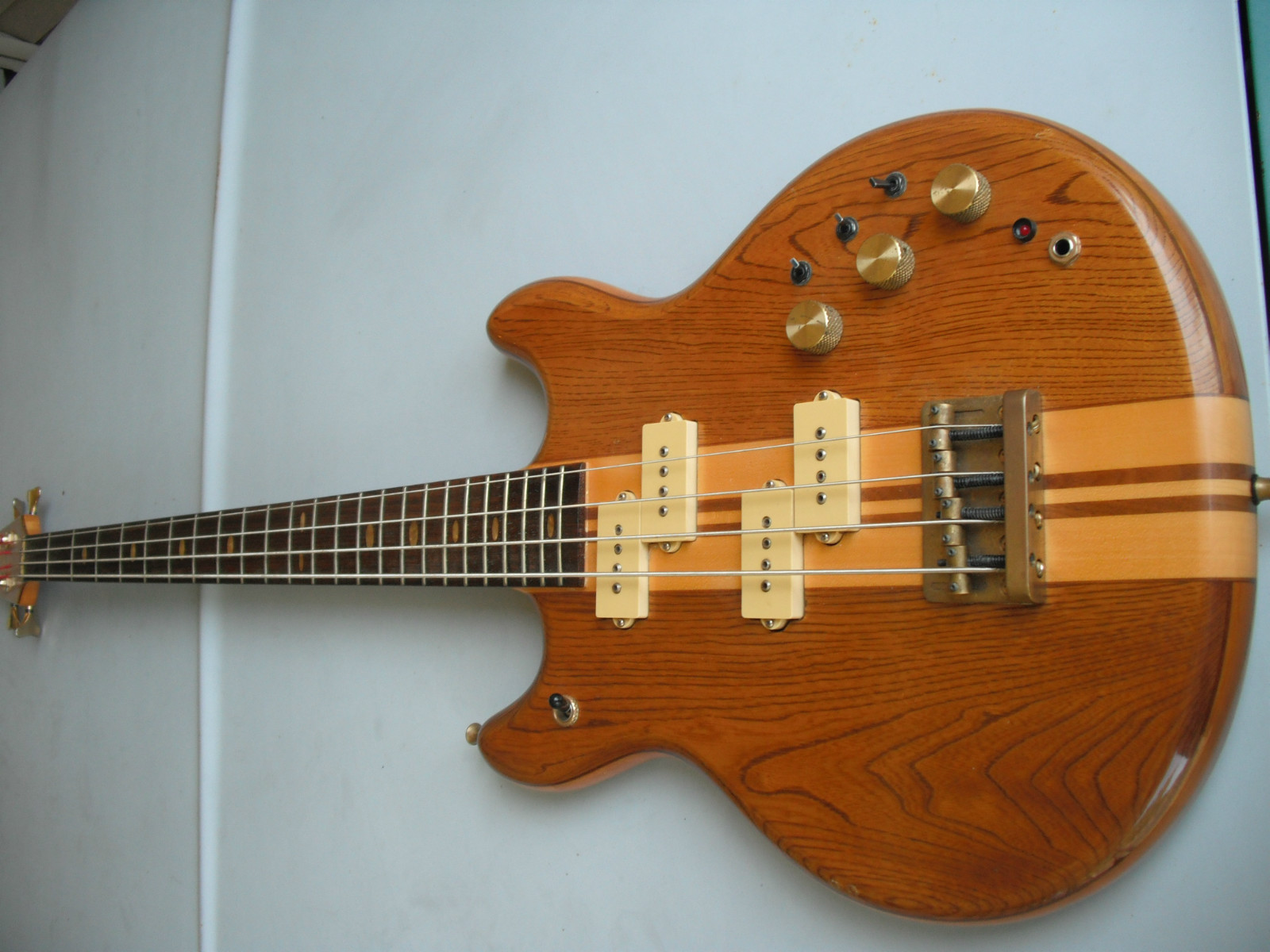

Pictures:
(The guitars may have been modified by it’s owners over the years…)
